ILX734LA Datasheet, Sensor, Sony Corporation

ILX734LA Features

  • Sensor
  • Number of effective pixels: 31500 pixels (10500 pixels × 3)
  • Pixel size: 8µm × 8µm (8µm pitch)
  • Distance between line: 64µm (8 lines)
  • Single-sided

PDF File Details

Part number:

ILX734LA

Manufacturer:

Sony Corporation

File Size:

152.98kb

Download:

📄 Datasheet

Description:

10500 x 3 pixel ccd linear sensor. The ILX734LA is a reduction type CCD linear sensor developped for color image scanner, and has shutter function per each color. This

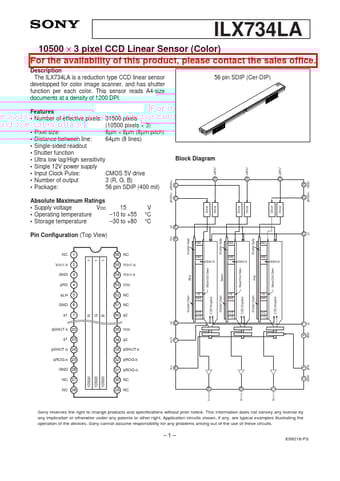

Datasheet Preview: ILX734LA 📥 Download PDF (152.98kb)
Page 2 of ILX734LA Page 3 of ILX734LA
