LP15MHz-1553 Datasheet - Soshin

LP15MHz-1553 for studio digital equipment

LP15MHz-1553 Application for studio digital equipment Characteristics LP15MHz-1553 Zin/Zout Insertion Loss Pass Band Ripple Attnuation 75 ohm (Unbaranced) 3.5dB max (at 500KHz) 0.1dBp-p max (0.1 up to 15MHz) 6.0dB min (at 18.5652MHz) 40dB min (22.125 up to 27.125MHz) 50dB min (27.125 up to 50MHz) 279+⁄ -5ns max (at 500KHz) Group Deray 2.0nsp-p max (0.1 up to 10MHz) 3.0nsp-p max (0.1 up to 15MHz) Dimensions Frequency Data www.DataSheet.in www.DataSheet.in .

LP15MHz-1553 Datasheet (106.30 KB)

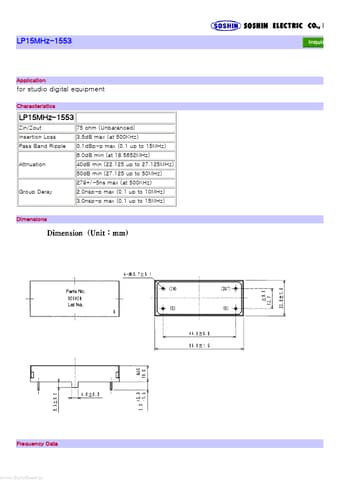

LP15MHz-1553 Datasheet Preview — Preview of LP15MHz-1553 PDF

Datasheet Details

Part number:

LP15MHz-1553

Manufacturer:

Soshin

File Size:

106.30 KB

Description:

For studio digital equipment.
