ST2301 - P Channel Enchancement Mode MOSFET

Datasheet Summary

Description

The ST2301 is the P-Channel logic enhancement mode power field effect transistor are produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

📥 Download Datasheet

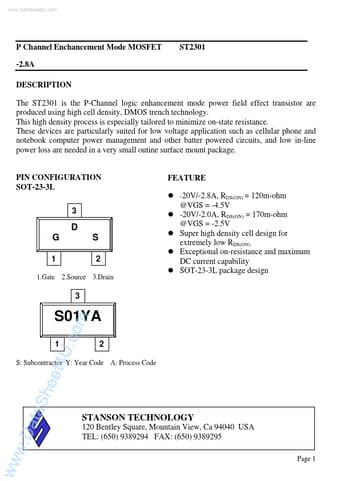

Datasheet preview – ST2301

Datasheet Details

Part number ST2301
Manufacturer Stanson Technology
File Size 124.77 KB
Description P Channel Enchancement Mode MOSFET
Datasheet download datasheet ST2301 Datasheet
Additional preview pages of the ST2301 datasheet.
