ST2303SRG - P-Channel Enhancement Mode MOSFET

Datasheet Summary

Description

ST2303SRG is the P-Channel logic enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

📥 Download Datasheet

Datasheet preview – ST2303SRG

Datasheet Details

Part number ST2303SRG
Manufacturer Stanson Technology
File Size 198.39 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet ST2303SRG Datasheet
Additional preview pages of the ST2303SRG datasheet.

📁 Similar Datasheet

  • ST2302 - N-Channel MOSFET (VBsemi)
  • ST230C - PHASE CONTROL THYRISTORS (IRF)
  • ST230C04C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C08C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C12C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C14C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C16C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C18C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C20C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230S - Phase Control Thyristor (INCHANGE)
Other Datasheets by Stanson Technology
  • ST2303 - P Channel Enchancement Mode MOSFET
  • ST2300 - N-Channel Enhancement Mode MOSFET
  • ST2300SRG - N-Channel Enhancement Mode MOSFET
  • ST2301 - P Channel Enchancement Mode MOSFET
  • ST2301A - P-Channel Enhancement Mode MOSFET
  • ST2302 - 3.6A N-Channel Enchancement Mode MOSFET
  • ST2304 - 3.2A N-Channel Enhancement Mode MOSFET
  • ST2304SRG - 3.2A N-Channel Enhancement Mode MOSFET

Full PDF Text Transcription

Click to expand full text

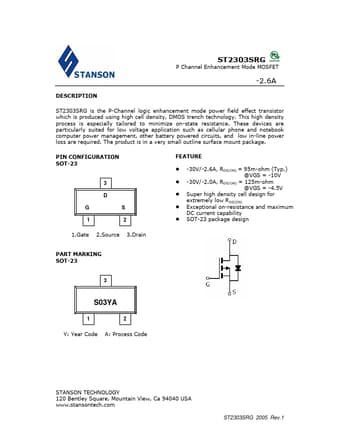

ST2303SRG P Channel Enhancement Mode MOSFET -2.6A DESCRIPTION ST2303SRG is the P-Channel logic enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management, other battery powered circuits, and low in-line power loss are required. The product is in a very small outline surface mount package. PIN CONFIGURATION SOT-23 3 D G S 1 2 FEATURE -30V/-2.6A, RDS(ON) = 95m-ohm (Typ.) @VGS = -10V -30V/-2.0A, RDS(ON) = 125m-ohm @VGS = -4.
