ST2300 - N-Channel Enhancement Mode MOSFET

Datasheet Summary

Description

The ST2300 is the N-Channel logic enhancement mode power field effect transistor is produced using high cell density, DMOS trench technology.

📥 Download Datasheet

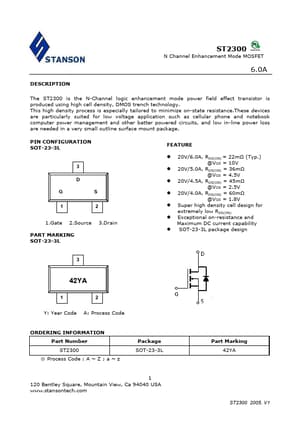

Datasheet preview – ST2300

Datasheet Details

Part number ST2300
Manufacturer Stanson Technology
File Size 380.20 KB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet ST2300 Datasheet
Additional preview pages of the ST2300 datasheet.

📁 Similar Datasheet

  • ST2302 - N-Channel MOSFET (VBsemi)
  • ST230C - PHASE CONTROL THYRISTORS (IRF)
  • ST230C04C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C08C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C12C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C14C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C16C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C18C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230C20C - PHASE CONTROL THYRISTORS (International Rectifier)
  • ST230S - Phase Control Thyristor (INCHANGE)
Other Datasheets by Stanson Technology
  • ST2300SRG - N-Channel Enhancement Mode MOSFET
  • ST2301 - P Channel Enchancement Mode MOSFET
  • ST2301A - P-Channel Enhancement Mode MOSFET
  • ST2302 - 3.6A N-Channel Enchancement Mode MOSFET
  • ST2303 - P Channel Enchancement Mode MOSFET
  • ST2303SRG - P-Channel Enhancement Mode MOSFET
  • ST2304 - 3.2A N-Channel Enhancement Mode MOSFET
  • ST2304SRG - 3.2A N-Channel Enhancement Mode MOSFET

Full PDF Text Transcription

Click to expand full text
ST2300 N Channel Enhancement Mode MOSFET 6.0A DESCRIPTION The ST2300 is the N-Channel logic enhancement mode power field effect transistor is produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance.These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other batter powered circuits, and low in-line power loss are needed in a very small outline surface mount package. PIN CONFIGURATION SOT-23-3L 3 D G S 1 2 1.Gate 2.Source 3.Drain PART MARKING SOT-23-3L FEATURE 20V/6.0A, RDS(ON) = 22mΩ (Typ.) @VGS = 10V 20V/5.0A, RDS(ON) = 36mΩ @VGS = 4.5V 20V/4.5A, RDS(ON) = 45mΩ @VGS = 2.5V 20V/4.0A, RDS(ON) = 60mΩ @VGS = 1.
