1SS177 AXIAL LEADED FAST SWITCHING DIODE

📥 Download Datasheet Datasheet Preview Page 1

Description

.

📥 Download Datasheet

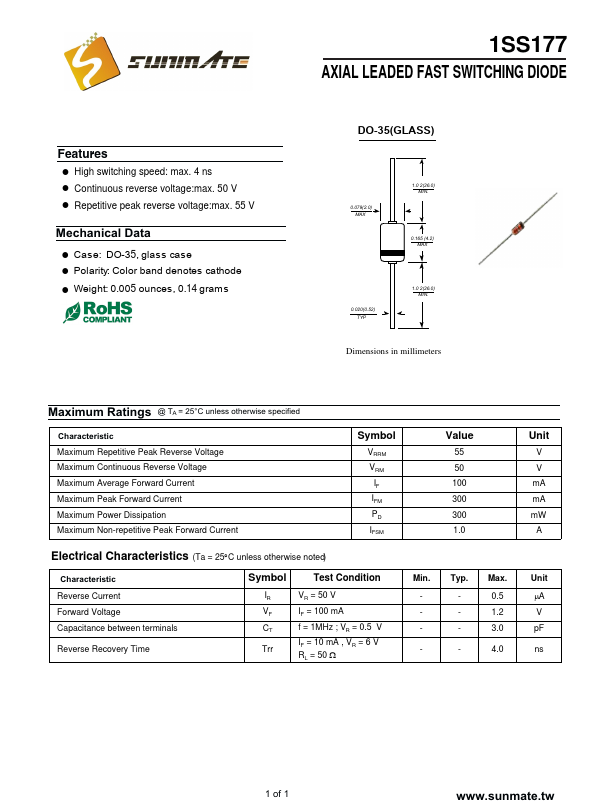

Preview of 1SS177 PDF

Datasheet Specifications

Part number
1SS177
Manufacturer
Sunmate
File Size
750.31 KB
Datasheet
1SS177-Sunmate.pdf
Description
AXIAL LEADED FAST SWITCHING DIODE

Features

* ! High switching speed: max. 4 ns ! Continuous reverse voltage:max. 50 V ! Repetitive peak reverse voltage:max. 55 V Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.005 ounces, 0.14 grams 1SS177 AXIAL LEADED FAST SWITCHING DIODE DO-35(GLASS) 0.079(2.0)
