1SS178 - HIGH SPEED SWITCHING DIODE

Sunmate

📥 Download Datasheet

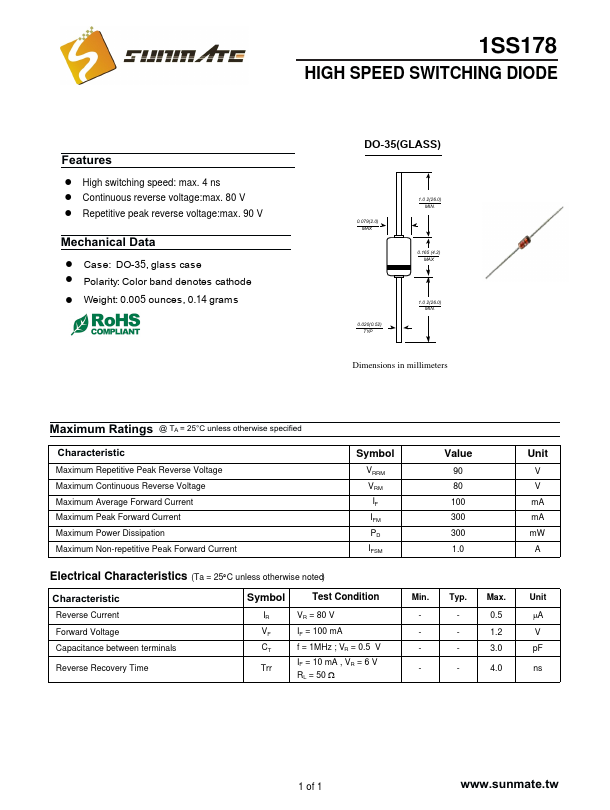

1SS178 Datasheet Preview — Preview of 1SS178 PDF

Datasheet Details

Part number	1SS178
Manufacturer	Sunmate
File Size	481.61 KB
Description	HIGH SPEED SWITCHING DIODE
Datasheet	1SS178-Sunmate.pdf

1SS178 Product details

Features

! High switching speed: max. 4 ns ! Continuous reverse voltage:max. 80 V ! Repetitive peak reverse voltage:max. 90 V Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.005 ounces, 0.14 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Maximum Repetitive Peak Reverse Voltage Maximum Continuous Reverse Vol.
