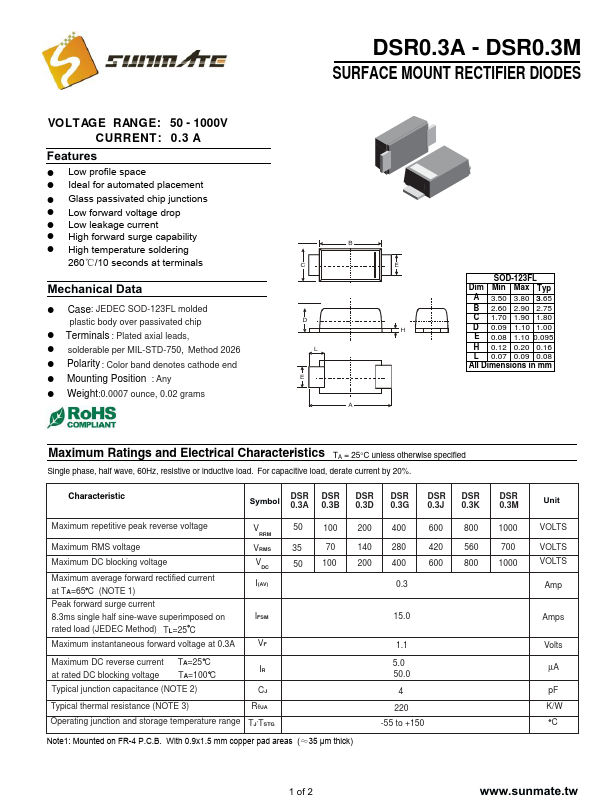

DSR0.3J, DSR0.3A - SURFACE MOUNT RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	DSR0.3J, DSR0.3A
Manufacturer	Sunmate
File Size	238.77 KB
Description	SURFACE MOUNT RECTIFIER DIODES
Datasheet	DSR0.3A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: DSR0.3J, DSR0.3A. Please refer to the document for exact specifications by model.

! Low profile space ! Ideal for automated placement ! Glass passivated chip junctions ! Low forward voltage drop ! Low leakage current ! High forward surge capability ! High temperature solder：ing 260℃/10 seconds at terminals Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivated chip ! Terminals : Plated axial leads, ! solderable per MIL-STD-750, Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams DSR0.3A - DS.
