ESJA04-02A - High voltage diode

Sunmate

📥 Download Datasheet

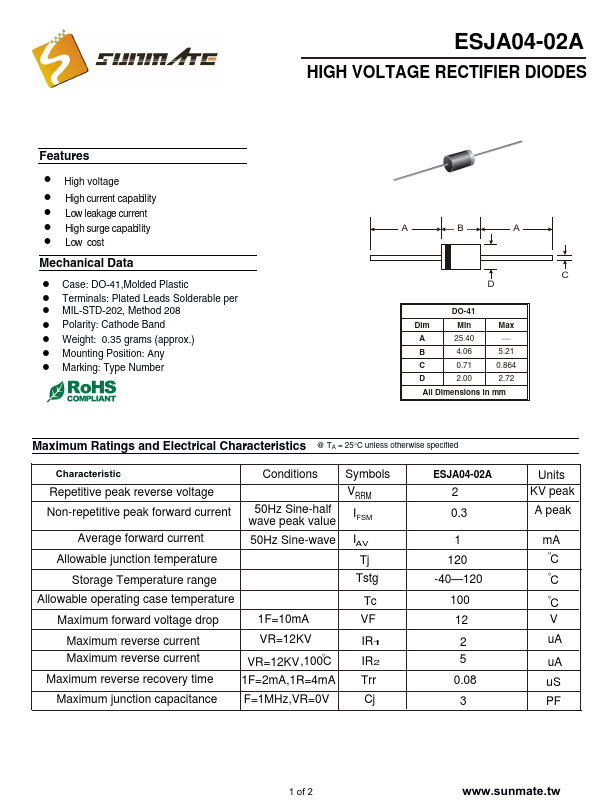

ESJA04-02A Datasheet Preview — Preview of ESJA04-02A PDF

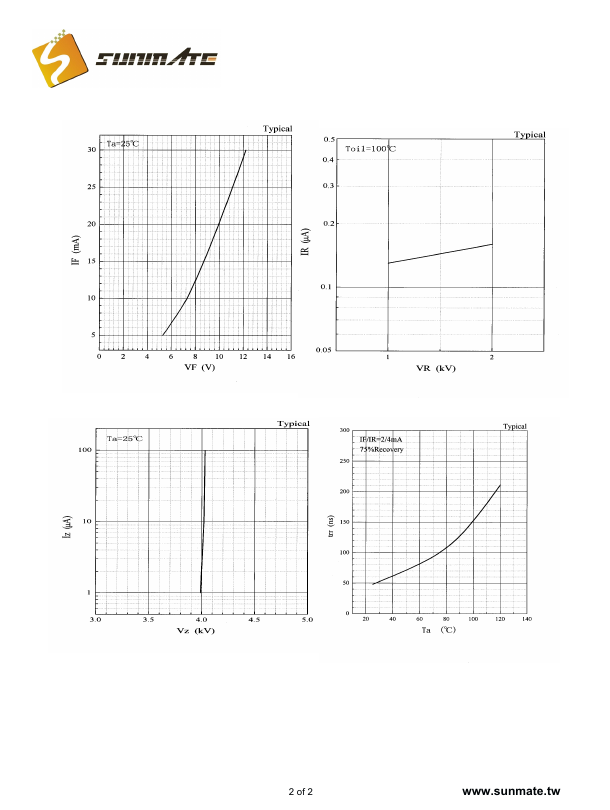

datasheet Preview Page 2

Datasheet Details

Part number	ESJA04-02A
Manufacturer	Sunmate
File Size	1.18 MB
Description	High voltage diode
Datasheet	ESJA04-02A-Sunmate.pdf

ESJA04-02A Product details

Features

! High voltage ! High current capability ! Low leakage current ! High surge capability ! Low cost Mechanical Data ! Case: DO-41,Molded Plastic ! Terminals: Plated Leads Solderable per ! MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Characteristics @ TA = 25°C unless ot.
