1N5399, 1N5391 Datasheet - Suntan

1N5399 GENERAL PURPOSE SILICON RECTIFIER

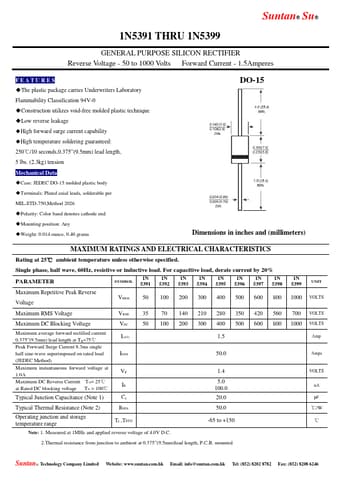

Suntan® Su® 1N5391 THRU 1N5399 GENERAL PURPOSE SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.5Amperes FEATU RE S The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250℃/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data Case:.

1N5391-Suntan.pdf

1N5399 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5399, 1N5391. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N5399, 1N5391

Manufacturer:

Suntan

File Size:

210.03 KB

Description:

General purpose silicon rectifier.

Note:

This datasheet PDF includes multiple part numbers: 1N5399, 1N5391.
Please refer to the document for exact specifications by model.
