SSP60R280SFD - 600V N-Channel Super-Junction MOSFET

📥 Download Datasheet

SSP60R280SFD Datasheet Preview — Preview of SSP60R280SFD PDF

Datasheet Details

Part number: SSP60R280SFD
Manufacturer: Super Semiconductor
File Size: 1.08 MB
Datasheet: SSP60R280SFD-SuperSemiconductor.pdf
Description: 600V N-Channel Super-Junction MOSFET

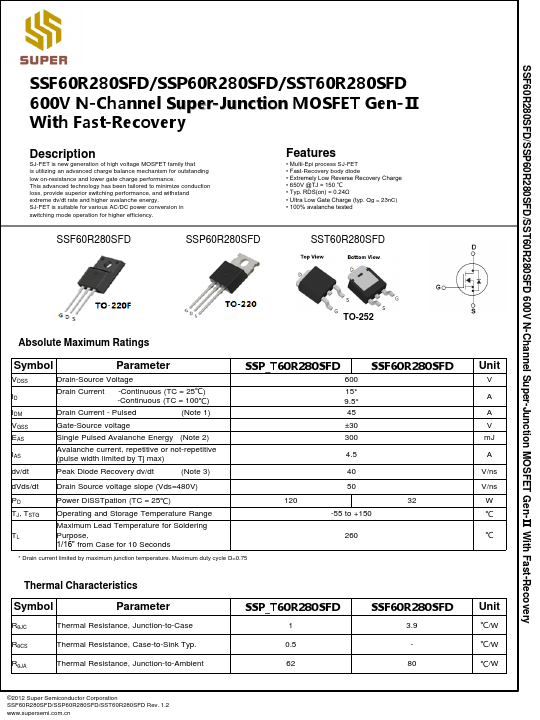

SSP60R280SFD Product details

Description

SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance.

Features

Multi-Epi process SJ-FET.
Fast-Recovery body diode.
Extremely Low Reverse Recovery Charge.
650V @TJ = 150 ℃.
Typ. RDS(on) = 0.24Ω.
Ultra Low Gate Charge (typ. Qg = 23nC).
100% avalanche tested SST60R280SFD TO-252 Absolute Maximum Ratings Symbol Parameter VDSS ID IDM VGSS EAS IAS Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 100℃) Drain Current - Pulsed (Note 1) Gate-Source voltage Single Puls.
