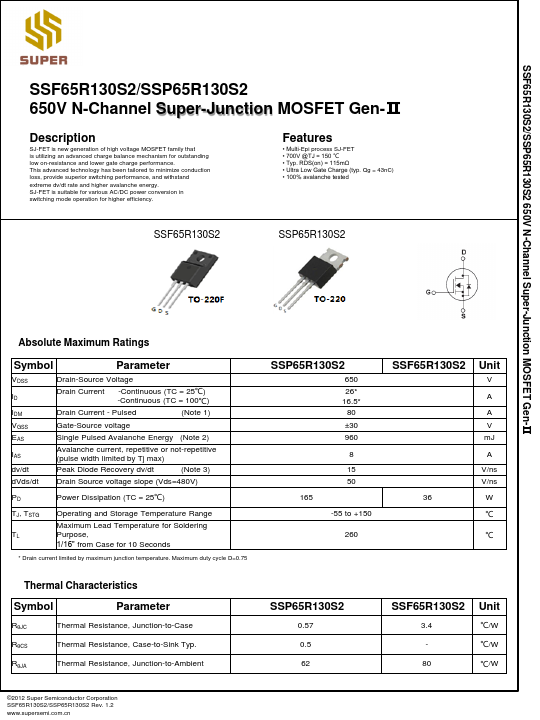

SSP65R130S2, SSP65R130S2-SUPER 650V N-Channel Super-Junction MOSFET

Description

SSF65R130S2/SSP65R130S2 650V N-Channel Super-Junction MOSFET Gen-Ⅱ SSF65R130S2/SSP65R130S2 650V N-Channel Super-Junction MOSFET Gen-Ⅱ .
SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lo.

📥 Download Datasheet

SSP65R130S2 Datasheet Preview — This datasheet PDF includes multiple part numbers: SSP65R130S2, SSP65R130S2-SUPER. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SSP65R130S2, SSP65R130S2-SUPER
Manufacturer: Super Semiconductor
File Size: 580.53 KB
Datasheet: SSP65R130S2-SUPER-SEMI.pdf
Description: 650V N-Channel Super-Junction MOSFET
Note: This datasheet PDF includes multiple part numbers: SSP65R130S2, SSP65R130S2-SUPER.
Please refer to the document for exact specifications by model.

Features

* Multi-Epi process SJ-FET
* 700V @TJ = 150 ℃
* Typ. RDS(on) = 115mΩ
* Ultra Low Gate Charge (typ. Qg = 43nC)
* 100% avalanche tested SSF65R130S2 SSP65R130S2 Absolute Maximum Ratings Symbol Parameter VDSS ID IDM VGSS EAS IAS dv/dt Drain-Source Voltage
