TP0620

P-Channel Enhancement-Mode Vertical DMOS FETs

TP0620 Features

* Low threshold (-2.4V max.)

* High input impedance

* Low input capacitance (85pF typical)

* Fast switching speeds

* Low on-resistance

* Free from secondary breakdown

* Low input and output leakage Applications

* Logic level int

TP0620 General Description

This low threshold, enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and Supertex’s well-proven, silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive t.

TP0620 Datasheet (338.17 KB)

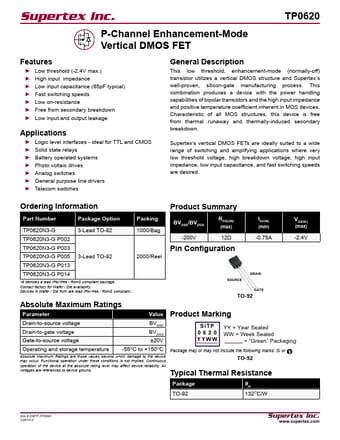

Preview of TP0620 PDF

Datasheet Details

Part number:

TP0620

Manufacturer:

Supertex Inc

File Size:

338.17 KB

Description:

P-channel enhancement-mode vertical dmos fets.
