ST0521D2 - 1-Line Ultra Low Capacitance Bi-directional TVS Diode

ST0521D2 Description

ST0521D2 1-Line Ultra Low Capacitance Bi-directional TVS Diode .
Mechanical Characteristics The ST0521D2 is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time.

ST0521D2 Features

* Ultra small package: 0.6x0.3x0.3mm
* Ultra low capacitance: 0.26pF typical
* Ultra low leakage: nA level
* Low operating voltage: 5V
* Low clamping voltage
* 2-pin leadless package
* Complies with following standards:
* IEC 61000-4-2

ST0521D2 Applications

* Cellular Handsets and Accessories
* Display Ports
* MDDI Ports
* USB Ports
* Digital Video Interface (DVI)
* PCI Express and Serial SATA Ports Ordering Information Part Number ST0521D2 Packaging 10000/Tape & Reel Reel Size 7 inch Dimensions Sch

📥 Download Datasheet

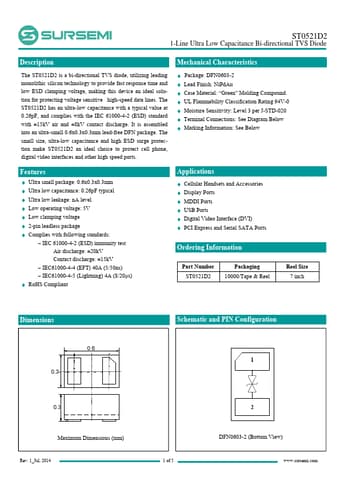

Preview of ST0521D2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST0521D2
Manufacturer
Sursemi
File Size
0.98 MB
Datasheet
ST0521D2-Sursemi.pdf
Description
1-Line Ultra Low Capacitance Bi-directional TVS Diode
