ST05250

RF Power LDMOS transistor

ST05250 Features

* Order code Frequency VDD POUT Gain Efficiency ST05250 945 MHz 28 V 250 W 13.5 dB 52 %

* High efficiency and linear gain operations

* Integrated ESD protection

* Large positive and negative gate-source voltage range for improved class C operation

* In compl

ST05250 General Description

The ST05250 is a 250 W, 28/32 V LDMOS FETs, designed for wideband communication and ISM applications in the frequency range from HF to 1 GHz. It can be used in class AB, B or C for all typical modulation formats. Product status link ST05250 Product summary Order code ST05250 Marking ST05250 P.

ST05250 Datasheet (595.21 KB)

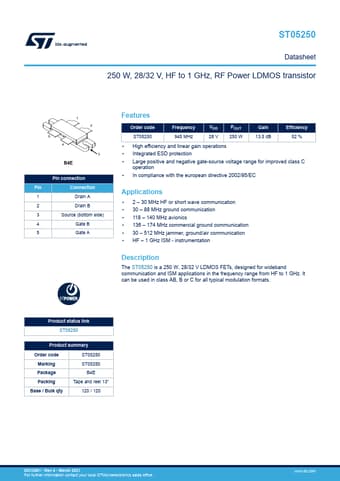

Preview of ST05250 PDF

Datasheet Details

Part number:

ST05250

Manufacturer:

STMicroelectronics ↗

File Size:

595.21 KB

Description:

Rf power ldmos transistor.
ST05250 Datasheet 250 W, 28/32 V, HF to 1 GHz, RF Power LDMOS transistor 1 2 5 4 3 B4E Pin connection Pin Connection 1 Drain A 2 Drain B 3 S.
