ST0541D2 - 1-Line Low Capacitance Bi-directional TVS Diode

ST0541D2 Description

ST0541D2 1-Line Low Capacitance Bi-directional TVS Diode .
Mechanical Characteristics The ST0541D2 is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time.

ST0541D2 Features

* Ultra small package: 0.6x0.3x0.3mm
* Low capacitance: 2.5pF typical
* Ultra low leakage: nA level
* Low operating voltage: 5V
* Low clamping voltage
* 2-pin leadless package
* Complies with following standards:
* IEC 61000-4-2 (ESD) i

ST0541D2 Applications

* Personal Digital Assistants
* Peripherals
* Audio Players
* USB 2.0
* Portable Instrumentation
* Keypads, Side Keys, LCD Displays Ordering Information Part Number ST0541D2 Packaging 10000/Tape & Reel Reel Size 7 inch Dimensions Schematic and PI

📥 Download Datasheet

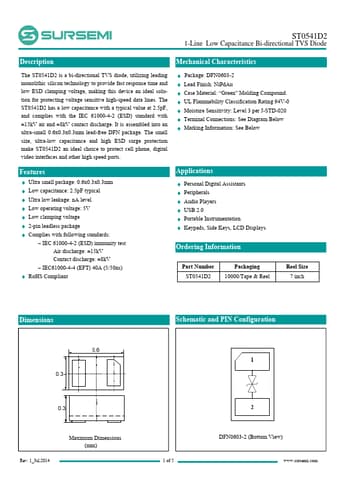

Preview of ST0541D2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST0541D2
Manufacturer
Sursemi
File Size
328.15 KB
Datasheet
ST0541D2-Sursemi.pdf
Description
1-Line Low Capacitance Bi-directional TVS Diode
