ST0521S5

1-Line Low Capacitance Bi-directional TVS Diode

ST0521S5 Features

* Low capacitance: 0.3pF typical

* Ultra low leakage: nA level

* Low operating voltage: 5V

* Low clamping voltage

* 2-pin leadless package

* Complies with following standards:

* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact dis

ST0521S5 General Description

Mechanical Characteristics The ST0521S5 is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines. The ST0521S5 has a low cap.

ST0521S5 Datasheet (836.43 KB)

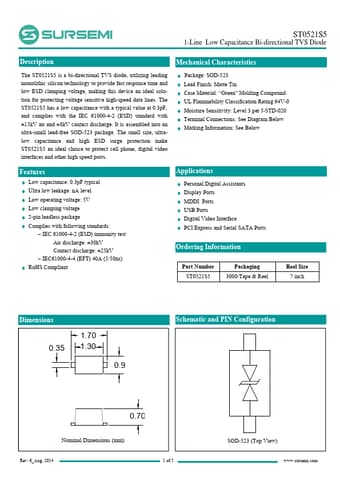

ST0521S5 Datasheet Preview — Preview of ST0521S5 PDF

Datasheet Details

Part number:

ST0521S5

Manufacturer:

Sursemi

File Size:

836.43 KB

Description:

1-line low capacitance bi-directional tvs diode.
