ST0524D25

Ultra Low Capacitance TVS Arrays

ST0524D25 Features

* Low capacitance: 0.30pF typical (I/O to I/O)

* Ultra low leakage: nA level

* Low operating voltage: 5V

* Low clamping voltage

* 10-pin leadless package

* Complies with following standards:

* IEC 61000-4-2 (ESD) immunity test Air discharge: ±1

ST0524D25 General Description

Mechanical Characteristics The ST0524D25 is an uni-directional TVS diode array, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines. The ST0524D25 has.

ST0524D25 Datasheet (563.27 KB)

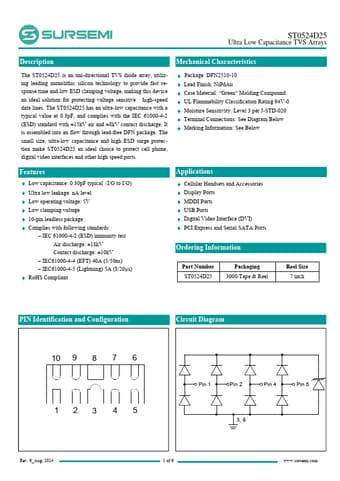

ST0524D25 Datasheet Preview — Preview of ST0524D25 PDF

Datasheet Details

Part number:

ST0524D25

Manufacturer:

Sursemi

File Size:

563.27 KB

Description:

Ultra low capacitance tvs arrays.
