ST0541S3

1-Line Low Capacitance Bi-directional TVS Diode

ST0541S3 Features

* Applications

* 450W peak pulse power (8/20μs)

* Ultra low capacitance: 1pF typical

* Ultra low leakage: nA level

* Low operating voltage: 5V

* Low clamping voltage

* Protects one power line or data line

* Complies with following standards:

ST0541S3 General Description

Mechanical Characteristics The ST0541S3 is a 5V bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines. The ST0541S3 has a low .

ST0541S3 Datasheet (1.54 MB)

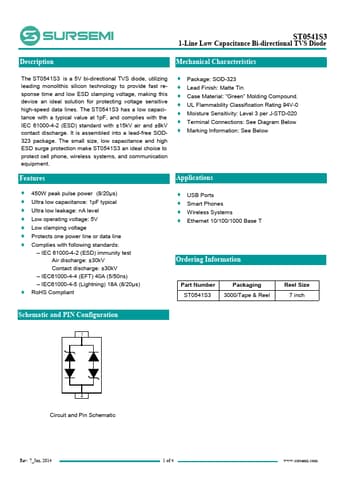

ST0541S3 Datasheet Preview — Preview of ST0541S3 PDF

Datasheet Details

Part number:

ST0541S3

Manufacturer:

Sursemi

File Size:

1.54 MB

Description:

1-line low capacitance bi-directional tvs diode.
