ST0541D4

1-Line Low Capacitance Bi-directional TVS Diode

ST0541D4 Features

* Ultra small package: 1.0x0.6x0.5mm

* Low capacitance: 2.5pF typical

* Ultra low leakage: nA level

* Low operating voltage: 5V

* Low clamping voltage

* 2-pin leadless package

* Complies with following standards:

* IEC 61000-4-2 (ESD) i

ST0541D4 General Description

Mechanical Characteristics The ST0541D4 is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines. The ST0541D4 has a low cap.

ST0541D4 Datasheet (289.37 KB)

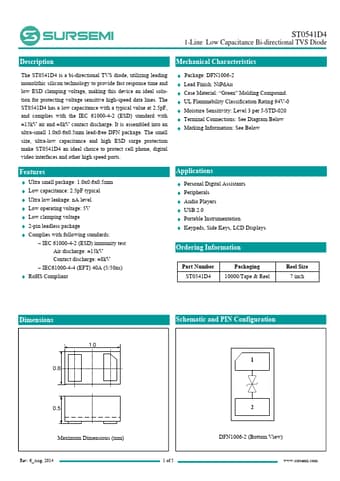

ST0541D4 Datasheet Preview — Preview of ST0541D4 PDF

Datasheet Details

Part number:

ST0541D4

Manufacturer:

Sursemi

File Size:

289.37 KB

Description:

1-line low capacitance bi-directional tvs diode.
