SEN06464H2CG1SA-25ER, SEN06464H2CG1SA-30ER, 512MB DDR2 - SDRAM SO-DIMM

Data Sheet Rev.1.0 18.02.2014 512MB DDR2 * SDRAM SO-DIMM 200 Pin SO-DIMM SEN06464H2CG1SA-xx[E/W]R Up to PC2-6400 in FBGA Technology RoHS co.

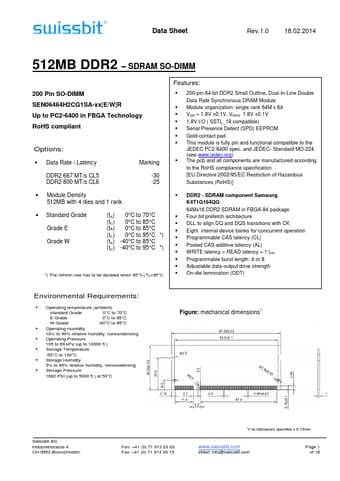

datasheet Preview Page 1 from Datasheet4u.com

SEN06464H2CG1SA-30ER-Swissbit.pdf

SEN06464H2CG1SA-25ER Datasheet Preview — This datasheet PDF includes multiple part numbers: SEN06464H2CG1SA-25ER, SEN06464H2CG1SA-30ER. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SEN06464H2CG1SA-25ER, SEN06464H2CG1SA-30ER

Manufacturer:

Swissbit

File Size:

398.28 KB

Description:

512MB DDR2 - SDRAM SO-DIMM

Note:

This datasheet PDF includes multiple part numbers: SEN06464H2CG1SA-25ER, SEN06464H2CG1SA-30ER.
Please refer to the document for exact specifications by model.

Features

* 200-pin 64-bit DDR2 Small Outline, Dual-In-Line Double Data Rate Synchronous DRAM Module
* Module organization: single rank 64M x 64
* VDD = 1.8V ±0.1V, VDDQ 1.8V ±0.1V
* 1.8V I/O ( SSTL_18 compatible)
* Serial Presence Detect (SPD) EEPROM
* Gold-contact pad
* This mod
