2N4400

Small Signal General Purpose NPN Transistors

TAITRON

2N4400 Features

* NPN Silicon Epitaxial Transistor for Switching and Amplifier Applications Mechanical Data Case: Terminals: Weight: TO-92, Plastic Package Solderable per MIL-STD-202G, Method 208 0.18 gram TO-92 Maximum Ratings (T Ambient=25ºC unless noted otherwise) Symbol Description 2N4400 2N440

2N4400 General Description

2N4400 2N4401 Unit Marking Code 2N4400 2N4401 VCEO Collector-Emitter Voltage 40 V VCBO Collector-Base Voltage 60 V VEBO Emitter-Base Voltage 6.0 V IC PD PD RθJA Collector Current Continuous Power Dissipation at TA=25°C Derate above 25°C Power Dissipation at TC=25°C Derate above 25°C T.

2N4400 Datasheet (214.56 KB)

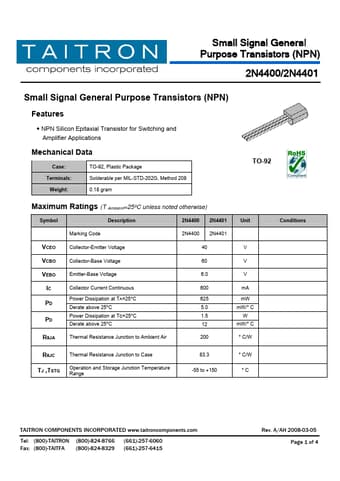

2N4400 Datasheet Preview — Preview of 2N4400 PDF

Datasheet Details

Part number:

2N4400

Manufacturer:

TAITRON

File Size:

214.56 KB

Description:

Small signal general purpose npn transistors.
