S3D

3.0A Surface Mount Rectifier

TAITRON

S3D Features

* Low profile surface mounted package

* Ideal for automated placement

* Glass passivated chip junction

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* High temperature soldering: 250 °C / 10 seconds at termin

S3D General Description

S3A S3B S3D S3G S3J S3K S3M Unit Conditions VRRM VRMS Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage 50 35 100 200 400 600 800 1000 70 140 280 420 560 700 V V VDC Maximum DC Blocking Voltage 50 100 200 400 600 800 1000 V IF(AV) Maximum Average Forward Rectified Curr.

S3D Datasheet (178.68 KB)

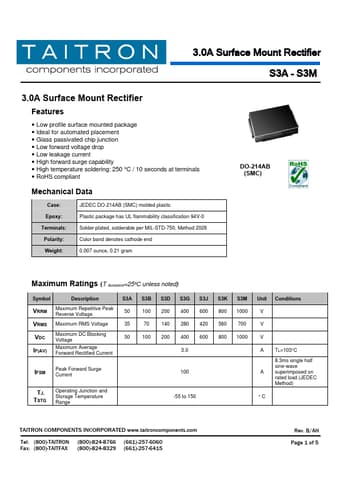

S3D Datasheet Preview — Preview of S3D PDF

Datasheet Details

Part number:

S3D

Manufacturer:

TAITRON

File Size:

178.68 KB

Description:

3.0a surface mount rectifier.
