MIL-COTS 20A, 40Vdc Passive EMC Filters FQA Series www.us.tdk-lambda.com/lp/products/fqa-series www.emea.tdk-lambda.com/fqa The FQA ﬁlter modules ha.

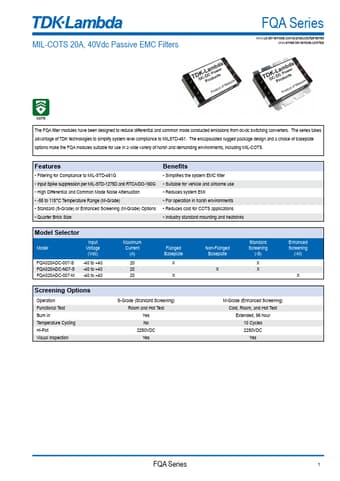

datasheet Preview Page 1 from Datasheet4u.com

FQA020ADC-007-S-TDK-Lambda.pdf

FQA020ADC-007-S Datasheet Preview — This datasheet PDF includes multiple part numbers: FQA020ADC-007-S, FQA020ADC-007-S-TDK. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FQA020ADC-007-S, FQA020ADC-007-S-TDK

Manufacturer:

TDK-Lambda

File Size:

1.05 MB

Description:

EMC Filters

Note:

This datasheet PDF includes multiple part numbers: FQA020ADC-007-S, FQA020ADC-007-S-TDK.
Please refer to the document for exact specifications by model.

Features

* Filtering for Compliance to MIL-STD-461G
* Input Spike suppression per MIL-STD-1275D and RTCA/DO-160G
* High Differential and Common Mode Noise Attenuation
* -55 to 115°C Temperature Range (M-Grade)
* Standard (S-Grade) or Enhanced Screening (M-Grade) Option

Applications

* Industry standard mounting and heatsinks Model Selector Model Input Voltage (Vdc) FQA020ADC-007-S FQA020ADC-N07-S FQA020ADC-007-M -40 to +40 -40 to +40 -40 to +40 Maximum Current (A) 20 20 20 Flanged Baseplate X X Non-Flanged Baseplate X Standard Screening (-S) X X Enhanced Scree
