DEA101910DT-6018A1 Datasheet - TDK

DEA101910DT-6018A1 Multilayer Phase Shifter

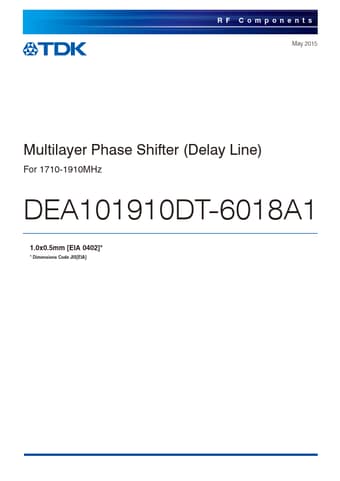

RF Components May 2015 Multilayer Phase Shifter (Delay Line) For 1710-1910MHz DEA101910DT-6018A1 1.0x0.5mm [EIA 0402] Dimensions Code JIS[EIA] RF Components Multilayer Phase Shifter (Delay Line) For 1710-1910MHz DEA101910DT-6018A1 SHAPES AND DIMENSIONS [Top view] 1.00±0.05 (4) (1) (3) (2) Marking 0.50±0.05 0.52max. 0.30±0.10 0.12±0.07 [Bottom view] 0.12±0.07 0.30±0.10 0.35±0.10 Terminal functions 1 IN 2 GND 3 OUT 4 GND Dimensions in mm RECOMMENDED LAND PATTERN 0.70 0.45.

DEA101910DT-6018A1-TDK.pdf
