DEA102025LT-6313A1 Multilayer Low Pass Filter

RF Components June 2015 Multilayer Low Pass Filter For 1880-2025MHz DEA102025LT-6313A1 1.0x0.5mm [EIA 0402] Dimensions Code JIS[EIA] RF Components Multilayer Low Pass Filter For 1880-2025MHz DEA102025LT-6313A1 SHAPES AND DIMENSIONS [Top view] 1.00±0.05 (4) 0.40max. (1) (3) (2) Marking 0.50±0.05 [Bottom view] 0.12±0.07 0.30±0.10 0.30±0.10 0.35±0.10 0.12±0.07 Terminal functions 1 IN 2 GND 3 OUT 4 GND Dimensions in mm RECOMMENDED LAND PATTERN 1.60 0.30 Conformity to RoHS .

DEA102025LT-6313A1-TDK.pdf

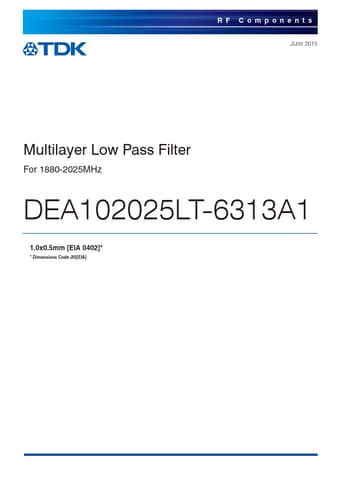

Preview of DEA102025LT-6313A1 PDF
DEA102025LT-6313A1 Datasheet Preview Page 2 DEA102025LT-6313A1 Datasheet Preview Page 3

Datasheet Details

Part number:

DEA102025LT-6313A1

Manufacturer:

TDK

File Size:

67.38 KB

Description:

Multilayer low pass filter.
