DEA102700LT-6307A2 Datasheet - TDK

DEA102700LT-6307A2 Multilayer Low Pass Filter

RF Components June 2015 Multilayer Low Pass Filter For 2400-2700MHz DEA102700LT-6307A2 1.0x0.5mm [EIA 0402] Dimensions Code JIS[EIA] RF Components Multilayer Low Pass Filter For 2400-2700MHz DEA102700LT-6307A2 0.50±0.05 SHAPES AND DIMENSIONS [Top view] 1.00±0.05 (4) 0.40max. (1) (3) (2) Marking 0.30±0.10 0.12±0.05 [Bottom view] 0.12±0.05 0.30±0.10 0.35±0.10 Terminal functions 1 IN 2 GND 3 OUT 4 GND Dimensions in mm RECOMMENDED LAND PATTERN 0.70 0.30 Conformity to RoHS D.

DEA102700LT-6307A2 Datasheet (66.87 KB)

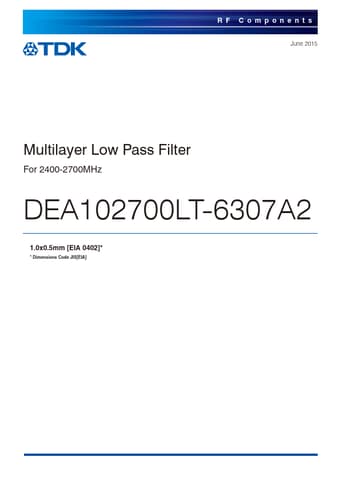

Preview of DEA102700LT-6307A2 PDF

Datasheet Details

Part number:

DEA102700LT-6307A2

Manufacturer:

TDK

File Size:

66.87 KB

Description:

Multilayer low pass filter.
