DEA142450BT-3024A1 Datasheet - TDK

DEA142450BT-3024A1 Multilayer Band Pass Filter

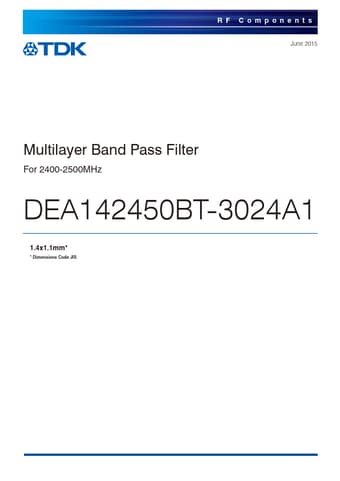

RF Components June 2015 Multilayer Band Pass Filter For 2400-2500MHz DEA142450BT-3024A1 1.4x1.1mm Dimensions Code JIS RF Components Multilayer Band Pass Filter For 2400-2500MHz DEA142450BT-3024A1 1.10±0.10 SHAPES AND DIMENSIONS [Top view] 1.40±0.10 (5) (4) 0.50±0.10 (1) (2) (3) Marking [Bottom view] 0.25±0.05 0.25±0.05 0.25±0.05 0.388±0.05 (1) 0.075±0.05 (2) (3) (5) (4) 0.25±0.05 0.10±0.05 0.325±0.05 RECOMMENDED LAND PATTERN 0.20 0.30 0.20 Terminal functions 1 IN 2 .
