MS5535C Datasheet - TE

MS5535C 14 bar Pressure Sensor Module

MS5535C 14 bar Pressure Sensor Module SPECIFICATIONS 0 14 bar absolute pressure range 6 coefficients for software compensation stored on-chip Piezoresistive silicon micromachined sensor Integrated miniature pressure sensor 9 x 9 mm 16 Bit ADC 3-wire serial interface 1 system clock line (32.768 kHz) Low voltage and low power consumption The MS5535C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. I.

MS5535C Features

* Supply voltage 2.2 V to 3.6 V

* Low supply current

* -40°C to +125°C operation temperature

* No external components required

* 16 Bit ADC resolution pressure measurement and control systems APPLICATIONS

* Mobile water depth measurement systems

* Diving computers and div

MS5535C Datasheet (515.36 KB)

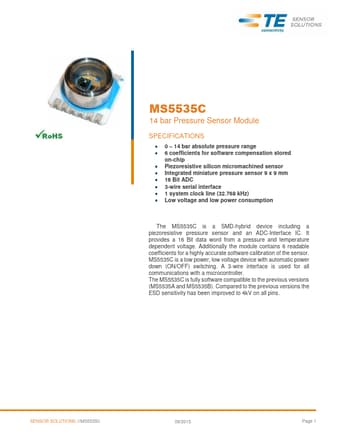

Preview of MS5535C PDF
MS5535C Datasheet Preview Page 2 MS5535C Datasheet Preview Page 3

Datasheet Details

Part number:

MS5535C

Manufacturer:

TE

File Size:

515.36 KB

Description:

14 bar pressure sensor module.
