THCV213 - LVDS SerDes transmitter and receiver

THine Electronics

📥 Download Datasheet

THCV213 Datasheet Preview — Preview of THCV213 PDF

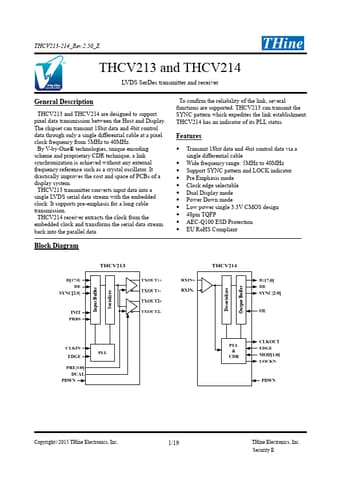

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	THCV213
Manufacturer	THine Electronics
File Size	810.17 KB
Description	LVDS SerDes transmitter and receiver
Datasheet	THCV213-THineElectronics.pdf

THCV213 Product details

Description

THCV213 and THCV214 are designed to support pixel data transmission between the Host and Display.

Features

Transmit 18bit data and 4bit control data via a single differential cable.
Wide frequency range: 5MHz to 40MHz.
Support SYNC pattern and LOCK indicator.
Pre Emphasis mode.
Clock edge selectable.
Dual Display mode.
Power Down mode.
Low power single 3.3V CMOS design.
48pin TQFP.
AEC-Q100 ESD Protection.
EU RoHS Compliant Block Diagram Input Buffer Serializer Deserializer Output Buffer Copyright©2015 THine Electronics, Inc. 1/19 THine Ele.
