THCV218 Datasheet - THine Electronics

THCV218 - HS High-speed video data receiver

THCV217 and THCV218 are designed to support video data transmission between the host and display.

One high-speed lane can carry up to 32bit data and 3 bits of synchronizing signals at a pixel clock frequency from 20MHz to 85MHz.

The chipset, which has two high-speed data lanes, can transmit video da

THCV218 Features

* Color depth selectable: 24(8×3)/32(10×3)bit

* Single-in/Single-out, Single-in/Dual-out, and Dual-in/Dual-out selectable for THCV217

* Single-in/Single-out, Dual-in/Single-out, and Dual-in/Dual-out selectable for THCV218

* AC coupling for high-speed lines

* CORE 1.8V, CMOS IO 3

THCV218-THineElectronics.pdf

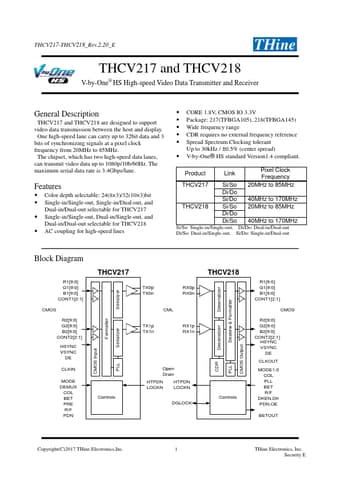

Preview of THCV218 PDF
THCV218 Datasheet Preview Page 2 THCV218 Datasheet Preview Page 3

Datasheet Details

Part number:

THCV218

Manufacturer:

THine Electronics

File Size:

476.03 KB

Description:

Hs high-speed video data receiver.
