THCV215 Datasheet - THine Electronics

HS High-speed Video Data Transmitter and Receiver

THCV215 Features

* Color depth selectable: 6/8/10/12 bit

* Single/Dual Link selectable

* AC coupling

* LVDS Input internal termination

* CORE 1.8V, LVDS 3.3V

* Package: 64 pin TSSOP

* Wide frequency range

* CDR requires no external frequency reference

* Supports Spread Spectrum Cl

THCV215 General Description

THCV215 and THCV216 are designed to support video data transmission between the host and display. The chipset can transmit 39bit video data and 3bit sync data via only a single differential cable at an LVDS clock frequency from 20MHz to 100MHz. The chipset, which has two high-speed data lanes, can .

THCV215 Datasheet (361.50 KB)

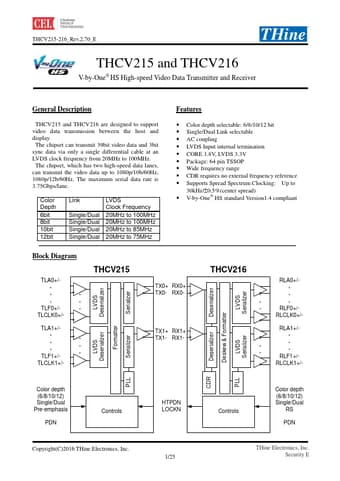

THCV215 Datasheet Preview — Preview of THCV215 PDF

Datasheet Details

Part number:

THCV215

Manufacturer:

THine Electronics

File Size:

361.50 KB

Description:

Hs high-speed video data transmitter and receiver.
