THCV214 Datasheet - THine Electronics

LVDS SerDes transmitter and receiver

THCV214 Features

* Transmit 18bit data and 4bit control data via a single differential cable

* Wide frequency range: 5MHz to 40MHz

* Support SYNC pattern and LOCK indicator

* Pre Emphasis mode

* Clock edge selectable

* Dual Display mode

* Power Down mode

* Low power single 3.3V CMOS d

THCV214 General Description

THCV213 and THCV214 are designed to support pixel data transmission between the Host and Display. The chipset can transmit 18bit data and 4bit control data through only a single differential cable at a pixel clock frequency from 5MHz to 40MHz. By V-by-One® technologies, unique encoding scheme and pr.

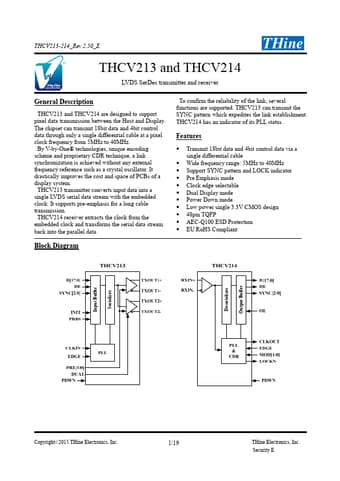

THCV214 Datasheet (810.17 KB)

THCV214 Datasheet Preview — Preview of THCV214 PDF

Datasheet Details

Part number:

THCV214

Manufacturer:

THine Electronics

File Size:

810.17 KB

Description:

Lvds serdes transmitter and receiver.
