THCV217, THCV218 Datasheet - THine Electronics

THCV217 HS High-speed Video Data Transmitter and Receiver

THCV217 and THCV218 are designed to support video data transmission between the host and display. One high-speed lane can carry up to 32bit data and 3 bits of synchronizing signals at a pixel clock frequency from 20MHz to 85MHz. The chipset, which has two high-speed data lanes, can transmit video da.

THCV217 Features

* Color depth selectable: 24(8×3)/32(10×3)bit

* Single-in/Single-out, Single-in/Dual-out, and Dual-in/Dual-out selectable for THCV217

* Single-in/Single-out, Dual-in/Single-out, and Dual-in/Dual-out selectable for THCV218

* AC coupling for high-speed lines

* CORE 1.8V, CMOS IO 3

THCV218-THineElectronics.pdf

This datasheet PDF includes multiple part numbers: THCV217, THCV218. Please refer to the document for exact specifications by model.

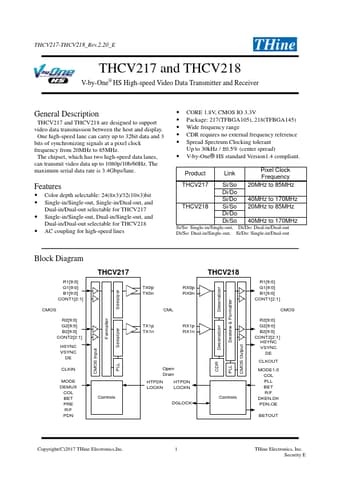

THCV217 Datasheet Preview Page 2 THCV217 Datasheet Preview Page 3

Datasheet Details

Part number:

THCV217, THCV218

Manufacturer:

THine Electronics

File Size:

476.03 KB

Description:

Hs high-speed video data transmitter and receiver.

Note:

This datasheet PDF includes multiple part numbers: THCV217, THCV218.
Please refer to the document for exact specifications by model.
