TK11239C

The TK11239C is LDO Regulator designed by TOKO.

Product Overview

TOKO

📥 Download Datasheet

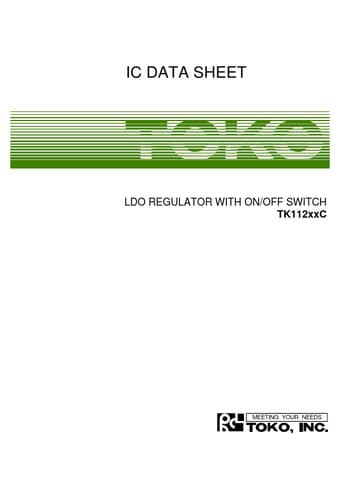

TK11239C LDO Regulator by TOKO - Datasheet Preview — Datasheet preview – TK11239C

Datasheet Details

Part number	TK11239C, TK11250C
Manufacturer	TOKO
File Size	619.49 KB
Description	LDO Regulator
Datasheet	TK11250C_TokoAmerica.pdf
Note	This datasheet PDF includes multiple part numbers: TK11239C, TK11250C. Please refer to the document for exact specifications by model.
Additional preview pages of the TK11239C datasheet.

Product details

Description

The TK112xxC is an integrated circuit with a silicon monolithic bipolar structure.

Features

TK112xxC.
Very low Dropout Voltage. (Vdrop=105mV at 100mA).
Very good stability (CL=0.1µF is stable for any type capacitor with 2.5V ≤ Vout).
High Precision output Voltage (±1.5% or ±50mV).
Good ripple rejection ratio (80dB at 1KHz).
Wide operating voltage range (1.8V ∼ 14.5V).
Peak output current is 480mA. (10% down point).
Built-in Short circuit protection.
Built-in Thermal Shutdown.
Suitable for Very Low Noise A.
