2N3700 SILICON NPN TRANSISTOR

SILICON NPN TRANSISTOR 2N3700 High Voltage, Medium Power Silicon Planar NPN Transistor Hermetic TO18 Metal Package High Reliability Screening Options Available CECC and Space Quality Level Options ABSOLUTE MAXIMUM RATINGS (TC = 25°C unless otherwise stated) VCBO Collector Base Voltage 140V VCEO Collector Emitter Voltage 80V VEBO Emitter Base Voltage 7.0V IC Continuous Collector Current 1.0A PD Total Power Dissipat.

2N3700-TT.pdf

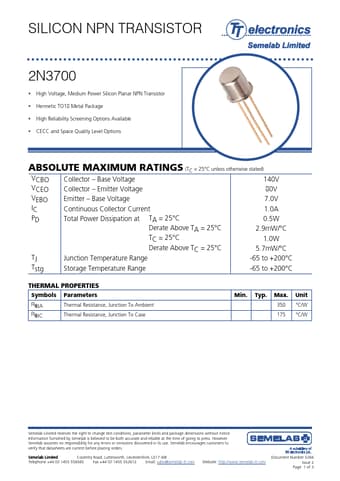

Preview of 2N3700 PDF
2N3700 Datasheet Preview Page 2 2N3700 Datasheet Preview Page 3

Datasheet Details

Part number:

2N3700

Manufacturer:

TT

File Size:

220.50 KB

Description:

Silicon npn transistor.
