2SB1218 - Transistor

Datasheet Summary

High forward current transfer ratio hFE. 1 Emitter 2 Base 3 Collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Rating -45 -45 -7 -200 -100 150 150 -55 to +150 Unit V V V A A mW Electrical Characteristics Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emit.

TY Semiconductor

Part number	2SB1218
Manufacturer	TY Semiconductor
File Size	90.11 KB
Description	Transistor
Datasheet	2SB1218 Datasheet
Additional preview pages of the 2SB1218 datasheet.

2SB1218 - Silicon PNP epitaxial planar type Transistor (Kexin)
2SB1218A - PNP Silicon Transistor (GME)
2SB1218A - Silicon PNP Transistor (Panasonic Semiconductor)
2SB1218A - PNP Transistor (TRANSYS Electronics)
2SB1218A - PNP Silicon Epitaxial Paner Transistors (SeCoS)
2SB1218A - PNP Transistor (Jin Yu Semiconductor)
2SB1218A - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
2SB1218AW - PNP Silicon Transistor (BL)
2SB1214 - PNP Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
2SB1215 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

Other Datasheets by TY Semiconductor

Click to expand full text

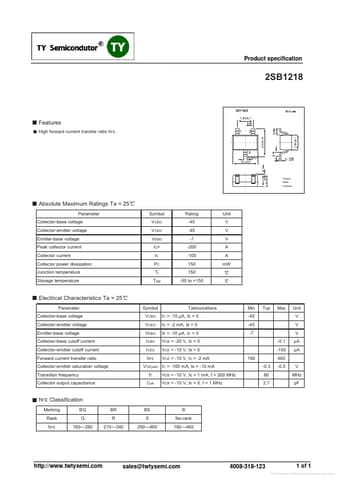

Product specification 2SB1218 Features High forward current transfer ratio hFE.

Published: Oct 29, 2013 |
