TS85410L - 50W CW GaN Broadband RF Switch

The TS85410L by Tagore is a 50W CW GaN Broadband RF Switch. Below is the official datasheet preview.

📥 Download Datasheet

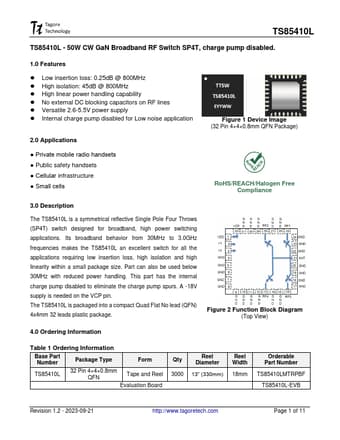

TS85410L 50W CW GaN Broadband RF Switch by Tagore - Datasheet Preview — Official preview page of the TS85410L 50W CW GaN Broadband RF Switch datasheet (Tagore).

Datasheet Details

Part number	TS85410L
Manufacturer	Tagore
File Size	784.82 KB
Description	50W CW GaN Broadband RF Switch
Datasheet	TS85410L-Tagore.pdf
Additional preview pages of the TS85410L datasheet.

TS85410L Product details

Description

The TS85410L is a symmetrical reflective Single Pole Four Throws (SP4T) switch designed for broadband, high power switching applications.

Features

Low insertion loss: 0.25dB @ 800MHz.
High isolation: 45dB @ 800MHz.
High linear power handling capability.
No external DC blocking capacitors on RF lines.
Versatile 2.6-5.5V power supply.
Internal charge pump disabled for Low noise.
