TS8541L - 50W CW GaN Broadband RF Switch

The TS8541L by Tagore is a 50W CW GaN Broadband RF Switch. Below is the official datasheet preview.

📥 Download Datasheet

TS8541L 50W CW GaN Broadband RF Switch by Tagore - Datasheet Preview — Official preview page of the TS8541L 50W CW GaN Broadband RF Switch datasheet (Tagore).

Datasheet Details

Part number	TS8541L
Manufacturer	Tagore
File Size	730.73 KB
Description	50W CW GaN Broadband RF Switch
Datasheet	TS8541L-Tagore.pdf

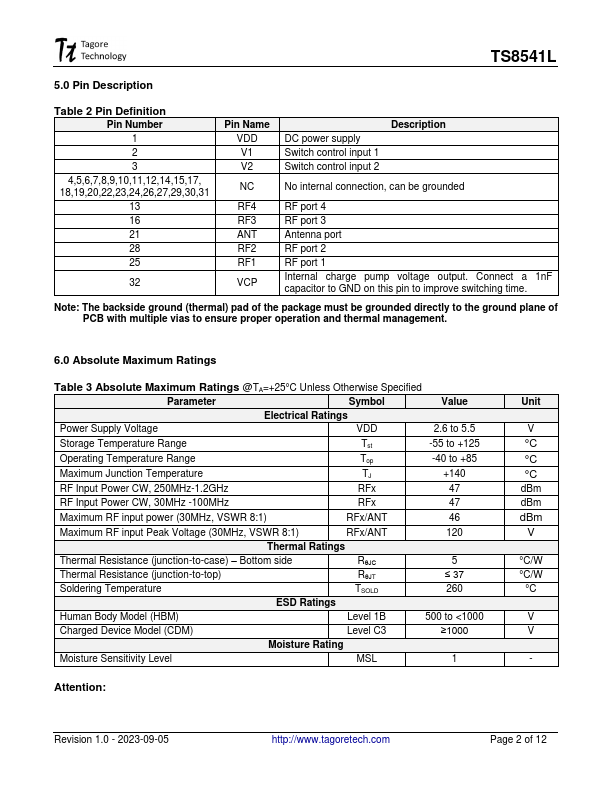

Additional preview pages of the TS8541L datasheet.

TS8541L Product details

Description

The TS8541L is a symmetrical reflective Single Pole Four Throws (SP4T) switch designed for broadband, high power switching applications.

Features

Low insertion loss: 0.25dB @ 800MHz.
High isolation: 45dB @ 800MHz.
High linear power handling capability.
No external DC blocking capacitors on RF lines.
Versatile 2.6-5.5V power supply 2.0.
