TSB1132 - Low Frequency PNP Transistor

Product Overview

Taiwan Semiconductor Company

Part number	TSB1132
Manufacturer	Taiwan Semiconductor Company
File Size	64.95 KB
Description	Low Frequency PNP Transistor
Datasheet	TSB1132 Datasheet

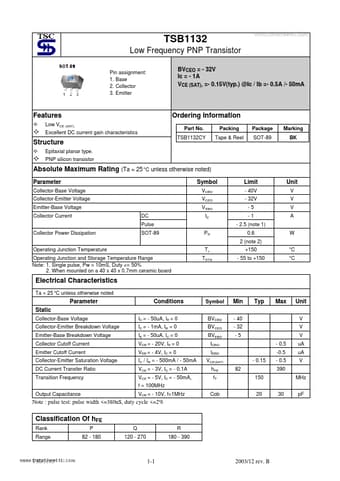

Additional preview pages of the TSB1132 datasheet.

Low VCE (SAT). Excellent DC current gain characteristics Ordering Information Part No. TSB1132CY Packing Tape & Reel Package SOT-89 Marking BK Structure Epitaxial planar type. PNP silicon transistor Absolute Maximum Rating (Ta = 25 oC unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operating Junction Temperature Operating Junction and Storage Temperature Range Note: 1. Single pulse, Pw = 10mS.
