TSB10N60M Datasheet, Mosfet, Truesemi

TSB10N60M Features

  • Mosfet - 10A, 600V, RDS(on) = 0.75Ω@VGS = 10 V - Low gate charge ( typical 48nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability D D D2-PAK GS GDS I2

PDF File Details

Part number:

TSB10N60M

Manufacturer:

Truesemi

File Size:

288.55kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This Power MOSFET is produced using True semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially

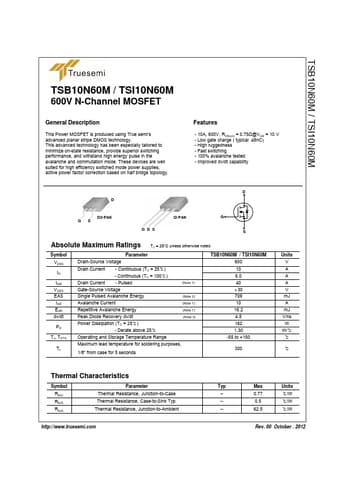

Datasheet Preview: TSB10N60M 📥 Download PDF (288.55kb)
Page 2 of TSB10N60M Page 3 of TSB10N60M
