TSB1184 - Low Vce(sat) PNP Transistor

TSB1184 Description

TSB1184 Low Vce(sat) PNP Transistor Pin Assignment: 1.Base 2.Collector 3.Emitter BVCEO = - 50V Ic = - 3A VCE (SAT), = - 0.3V(typ.) @Ic / Ib = - 2A.

TSB1184 Features

* Low VCE (SAT). Excellent DC current gain characteristics Ordering Information Part No. TSB1184CP Packing Tape & Reel Package TO-252 Structure Epitaxial planar type. PNP silicon transistor Absolute Maximum Rating (Ta = 25 oC unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitte

📥 Download Datasheet

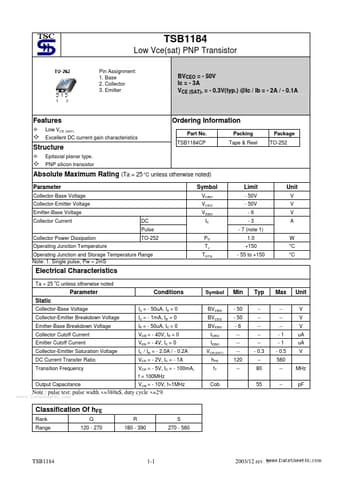

Preview of TSB1184 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSB1184
Manufacturer
Taiwan Semiconductor
File Size
69.09 KB
Datasheet
TSB1184_TaiwanSemiconductor.pdf
Description
Low Vce(sat) PNP Transistor
