TSSOP48 Datasheet - TopLine

TSSOP48 48L DAISY CHAIN PIN CONNECTIONS

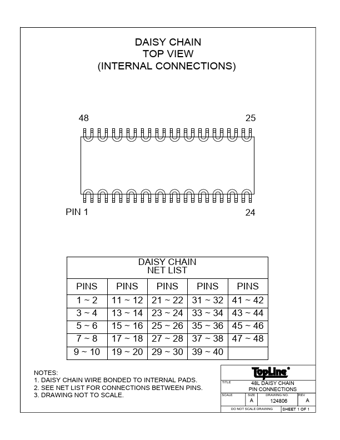

DAISY CHAIN TOP VIEW (INTERNAL CONNECTIONS) 48 25 PIN 1 24 DAISY CHAIN NET LIST PINS PINS 11 ~ 12 13 ~ 14 15 ~ 16 17 ~ 18 19 ~ 20 PINS 21 ~ 22 23 ~ 24 25 ~ 26 27 ~ 28 29 ~ 30 PINS 31 ~ 32 33 ~ 34 35 ~ 36 37 ~ 38 39 ~ 40 PINS 41 ~ 42 43 ~ 44 45 ~ 46 47 ~ 48 1~2 3~4 5~6 7~8 9 ~ 10 NOTES: 1. DAISY CHAIN WIRE BONDED TO INTERNAL PADS. 2. SEE NET LIST FOR CONNECTIONS BETWEEN PINS. 3. DRAWING NOT TO SCALE. TITLE 48L DAISY CHAIN PIN CONNECTIONS SIZE DRAWING NO. REV SCALE A 124806 A DO .

TSSOP48 Datasheet (142.83 KB)

TSSOP48 Datasheet Preview — Preview of TSSOP48 PDF

Datasheet Details

Part number:

TSSOP48

Manufacturer:

TopLine

File Size:

142.83 KB

Description:

48l daisy chain pin connections.
