TK20A - Current Transducer

Product Overview

Topstek

📥 Download Datasheet

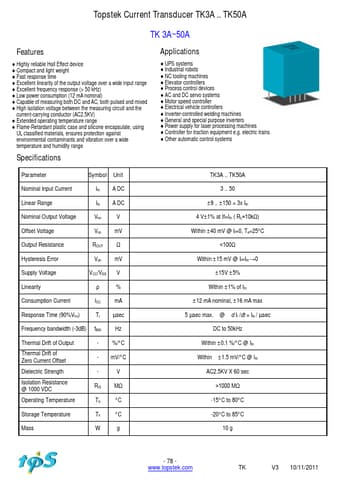

TK20A Current Transducer by Topstek - Datasheet Preview — Datasheet preview – TK20A

Datasheet Details

Part number	TK20A
Manufacturer	Topstek
File Size	326.52 KB
Description	Current Transducer
Datasheet	TK20A Datasheet
Additional preview pages of the TK20A datasheet.

Product details

Features

Highly reliable Hall Effect device.
Compact and light weight.
Fast response time.
Excellent linearity of the output voltage over a wide input range.
Excellent frequency response (> 50 kHz).
Low power consumption (12 mA nominal).
Capable of measuring both DC and AC, both pulsed and mixed.
High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
Extended operating temperature.
