TK20A60U - Silicon N-Channel MOSFET

TK20A60U Description

TK20A60U TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (DTMOS II) TK20A60U Switching Regulator Applications * Low drain-source O.

TK20A60U Applications

* Low drain-source ON-resistance: RDS (ON) = 0.165 Ω (typ. )
* High forward transfer admittance: ⎪Yfs⎪ = 12 S (typ. )
* Low leakage current: IDSS = 100 μA (max) (VDS = 600 V)
* Enhancement-mode: Vth = 3.0 to 5.0 V (VDS = 10 V, ID = 1 mA) Unit: mm Absolute Maximum Rati

📥 Download Datasheet

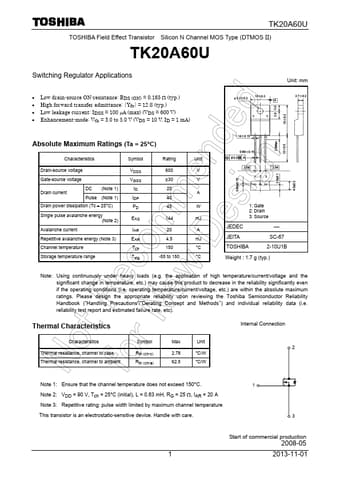

Preview of TK20A60U PDF
datasheet Preview Page 2 datasheet Preview Page 3
