TK200F04N1L - Silicon N-Channel MOSFET

Features

  • (1) AEC-Q101 qualified (2) Low drain-source on-resistance: RDS(ON) = 0.78 mΩ (typ. ) (VGS = 10 V) (3) Low leakage current: IDSS = 10 µA (max) (VDS = 40 V) (4) Enhancement mode: Vth = 2.0 to 3.0 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit TK200F04N1L TO-220SM(W) 1: Gate 2: Drain (Heatsink) 3: Source ©2015-2020 Toshiba Electronic Devices & Storage Corporation 1 Start of commercial production 2014-08 2020-06-24 Rev.8.0 TK200F04N1L 4. Absolute Maximum Ratings (Note) (Ta = 25 .

📥 Download Datasheet

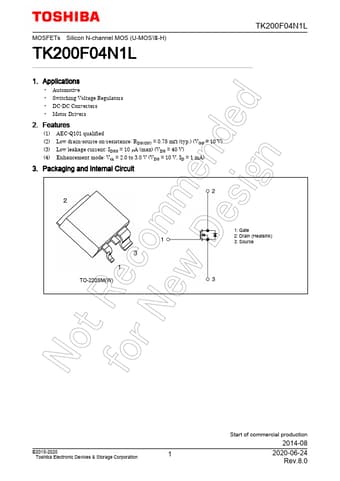

Datasheet preview – TK200F04N1L
