TK2051 Datasheet - Tripath Technology

TK2051 STEREO 50W (8ohm) CLASS-T DIGITAL AUDIO AMPLIFIER DRIVER

The TK2051 (TC2000/TP2051 chipset) is a 50W continuous average power per channel, Class-T Digital Audio Power Amplifier using Tripath’s proprietary Digital Power ProcessingTM technology. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers. APP.

TK2051 Features

* 5.1-Channel DVD Mini/Micro Component Systems Home Theater Stereo applications (6Ω / 8Ω) Mono applications (4Ω) BENEFITS Single Supply Operation Very High Efficiency Wide Dynamic Range Compact layout Class-T Architecture High Output power 35W @ 6Ω, < 1% THD+N 50W @ 8Ω, < 3% THD+N 117W @ 4Ω, < 10.0

TK2051_TripathTechnology.pdf

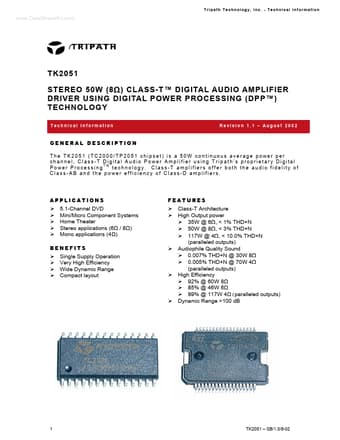

Preview of TK2051 PDF
TK2051 Datasheet Preview Page 2 TK2051 Datasheet Preview Page 3

Datasheet Details

Part number:

TK2051

Manufacturer:

Tripath Technology

File Size:

480.99 KB

Description:

Stereo 50w (8ohm) class-t digital audio amplifier driver.
