TK2070 Datasheet - Tripath Technology

TK2070 STEREO 70W (4Ohm) CLASS-T DIGITAL AUDIO AMPLIFIER DRIVER

The TK2070 (TC2001/TPS1035 chipset) is a bridged stereo 70W continuous average power per channel, Class-T Digital Audio Power Amplifier using Tripath’s proprietary Digital Power ProcessingTM technology. The TK2070 chipset consists of 1 TC2001 and 4 TPS1035’s to obtain a bridged stereo configuration.

TK2070 Features

* 5.1-Channel DVD Mini/Micro Component Systems Home Theater Stereo applications (4Ω / 8Ω) Powered Subwoofer BENEFITS Single Supply Operation Very High Efficiency Wide Dynamic Range Compact layout Class-T Architecture High Output power 70W @ 4Ω, 10% THD+N Bridged 40W @ 8Ω, 10% THD+N Bridged Audiophi

TK2070_TripathTechnology.pdf

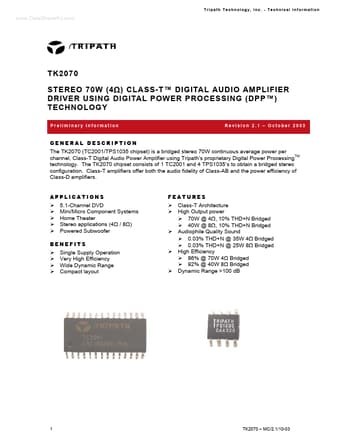

Preview of TK2070 PDF
TK2070 Datasheet Preview Page 2 TK2070 Datasheet Preview Page 3

Datasheet Details

Part number:

TK2070

Manufacturer:

Tripath Technology

File Size:

447.42 KB

Description:

Stereo 70w (4ohm) class-t digital audio amplifier driver.
