TK20A25D - Silicon N-Channel MOSFET

Product Overview

Toshiba

Part number	TK20A25D
Manufacturer	Toshiba
File Size	233.89 KB
Description	Silicon N-Channel MOSFET
Datasheet	TK20A25D Datasheet

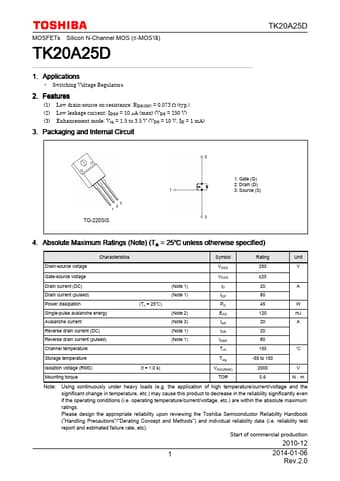

Additional preview pages of the TK20A25D datasheet.

(1) Low drain-source on-resistance: RDS(ON) = 0.073 Ω (typ. ) (2) Low leakage current: IDSS = 10 µA (max) (VDS = 250 V) (3) Enhancement mode: Vth = 1.5 to 3.5 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit TK20A25D 1: Gate (G) 2: Drain (D) 3: Source (S) TO-220SIS 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Symbol Rating Unit Drain-source voltage VDSS 250 V Gate-source voltage VGSS ±20 Drain current (DC) Drain current (pulse.
