TK2050 Datasheet - Tripath

TK2050 STEREO 50W (8OHM) CLASS-T DIGITAL AUDIO AMPLIFIER

The TK2050 (TC2000/TP2050 chipset) is a 50W continuous average power per channel, Class-T Digital Audio Power Amplifier using Tripath’s proprietary Digital Power ProcessingTM technology. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers. The .

TK2050 Features

* 5.1-Channel DVD Mini/Micro Component Systems Home Theater Stereo applications (6Ω / 8Ω) Mono applications (4Ω) BENEFITS Single Supply Operation Very High Efficiency Wide Dynamic Range Compact layout Class-T Architecture High Output power 35W @ 6Ω, < 1% THD+N 50W @ 8Ω, < 3% THD+N 117W @ 4Ω, < 10.0

TK2050 Datasheet (418.66 KB)

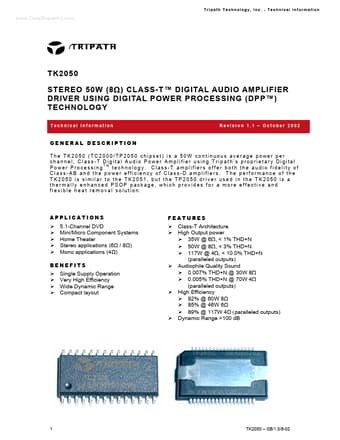

Preview of TK2050 PDF

Datasheet Details

Part number:

TK2050

Manufacturer:

Tripath

File Size:

418.66 KB

Description:

Stereo 50w (8ohm) class-t digital audio amplifier.
